Dewatering Screen

Why choose Gaofu dewatering screen

Product advantages

  • It is relatively small in size and has large processing capacity per unit area, which facilitates system process layout.
  • The high wear-resistant screen plate has a long service life, modular assembly design and easy replacement.
  • V-shaped screen surface design, -5゜ screen surface climbing dewatering, dry tailings discharge with low water content and high efficiency.

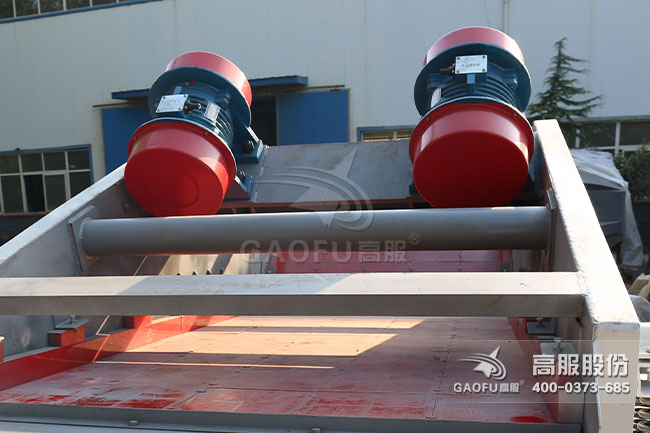

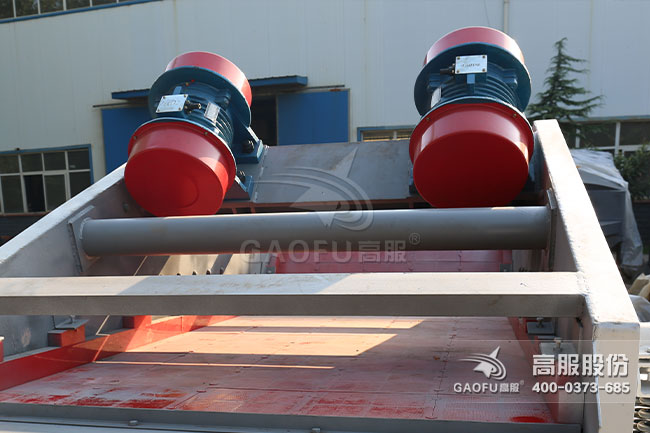

  • The specially designed frequency, amplitude, and low-consumption power source are suitable for 24-hour continuous dry discharge operations for a variety of dehydration needs.
  • The steel components are riveted and welded together to form the main body of the frame with no internal stress, high strength, light weight and durability.


Why is Gaofu dewatering Screen?

  • Screen surface V-shaped design More efficient dehydration

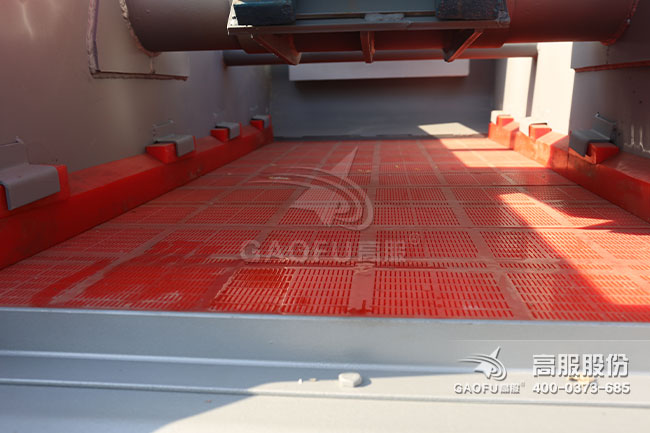

  • Wear-resistant polyurethane material The screen has high wear resistance and inverted triangle anti-blocking design

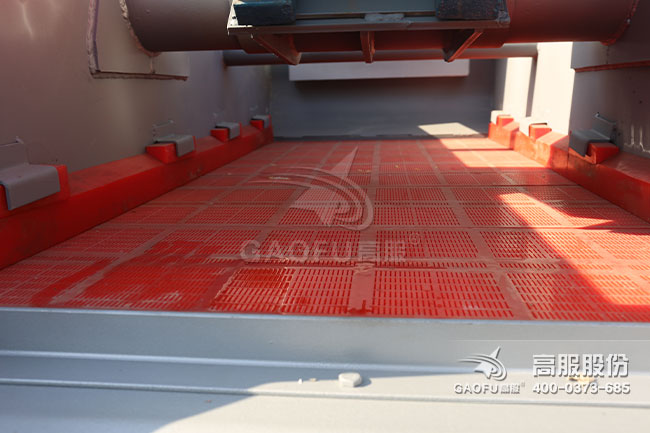

  • Sieve plate modular design Easy to replace and save costs
  • 24 hours continuous work System layout combined with technology

These industries have chosen Gaofu dewatering screens.

Dehydration, desliming and desliming of coal slime in the coal industry; fine-grained dry and wet screening, dehydration and desliming in the chemical industry; sludge dehydration and desliming in the environmental protection industry.

Gaofu dewatering Screen works very well for these materials!

Iron tailings, gold tailings, copper tailings, vanadium tailings, lead-zinc tailings, graphite tailings, quartz sand, zircon sand, glass sand, construction sand, foundry sand, building materials sand, potassium feldspar dehydration, urban Solid-liquid separation of sewage, industrial sewage, river sludge, and filtration in sewage treatment plants.

Technical Parameters

Model Angle(°) Mesh Size(mm) Input Capacity(t/h) Power(kw) Exciter Model Total Weight(t)
GFVD1036 -5~-3 0.3~0.6 10~35 2 ×1.1 2×YZO-20-4 3.8
GFVD1236 -5~-3 18~65 2 ×2.4 2×YZO-30-4 4.5
GFVD1536 -5~-3 30~90 2 ×3.1 2×YZO-40-6 5.7
GFVD1838 -5~-3 40~120 2 ×7.5 4×39-6 6.6
GFVD2138 -3~0 60~150 2 ×7.5 4×45-6 8.2
GFVD2538 -3~0 80~200 2 ×11 4×64-6 11



Who are using Gaofu dewatering screen
  • Chemical
  • Food
  • Biological
  • Metal powder
  • Fortune 500 companies
  • New energy
  • Pharmaceutical

Gaofu strength gallery
  • Certificate
  • Company scene

Product images

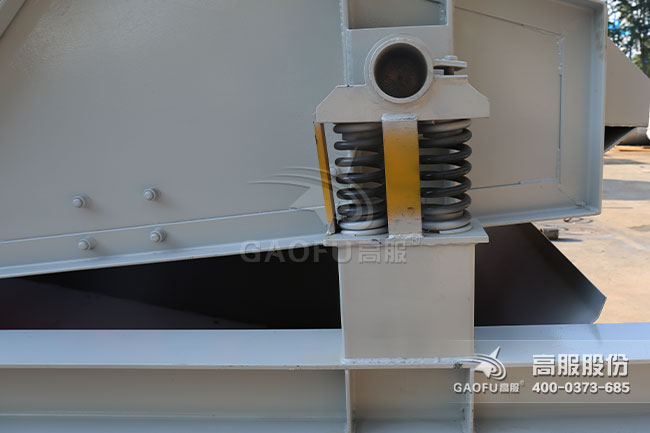

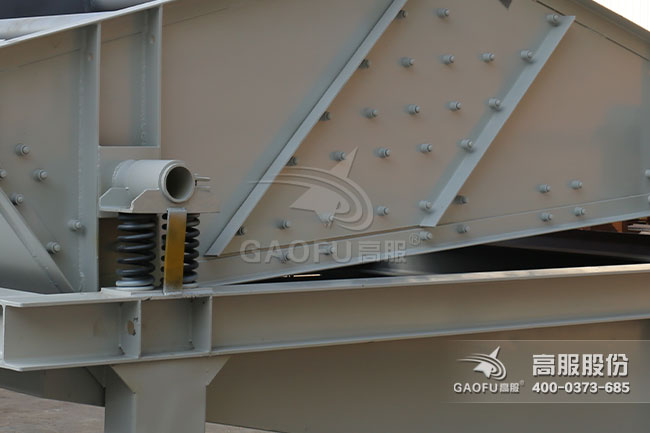

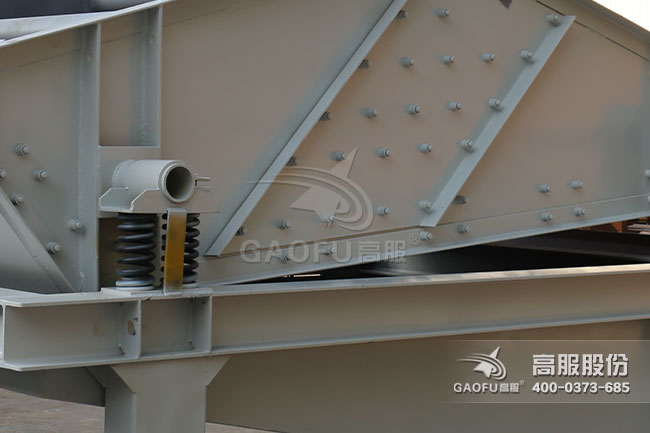

  • Product Gallery

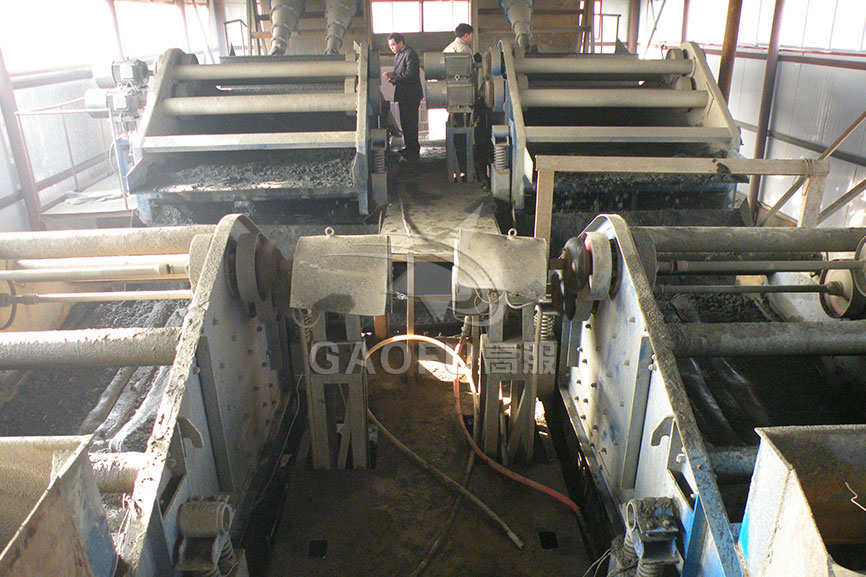

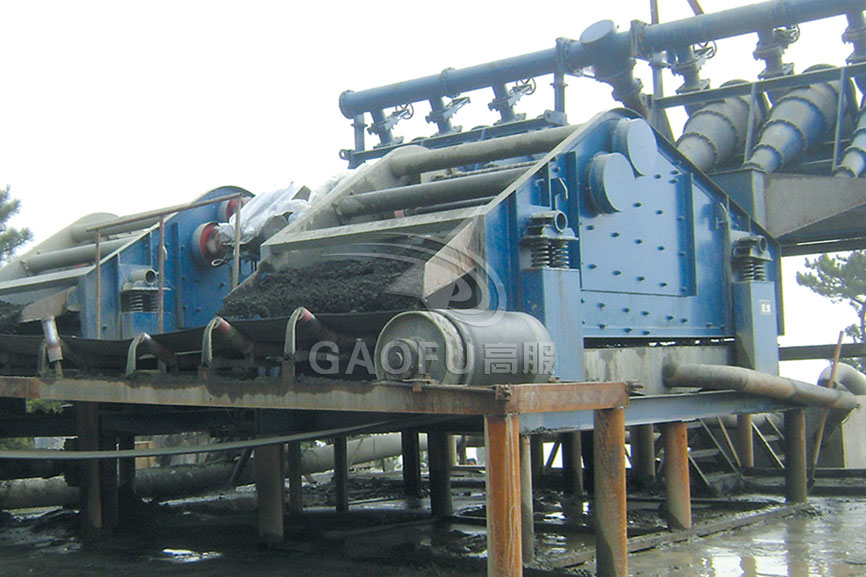

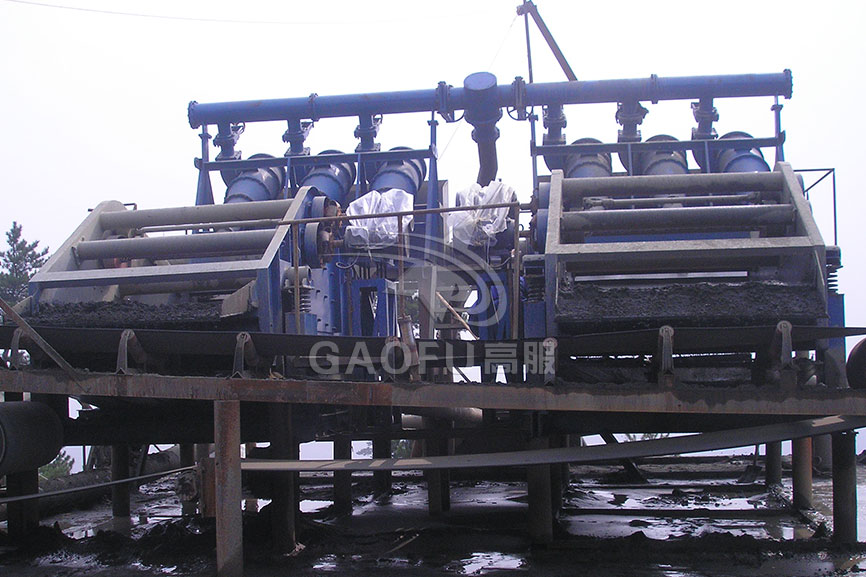

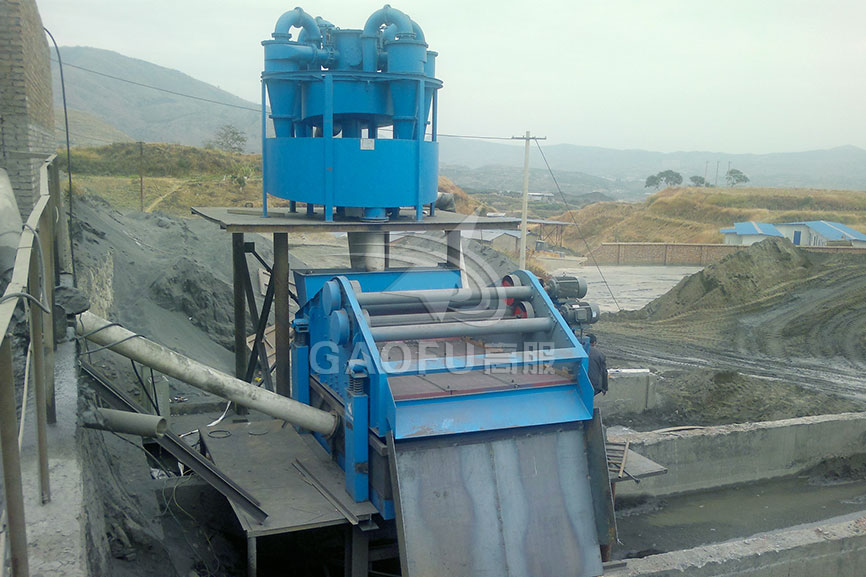

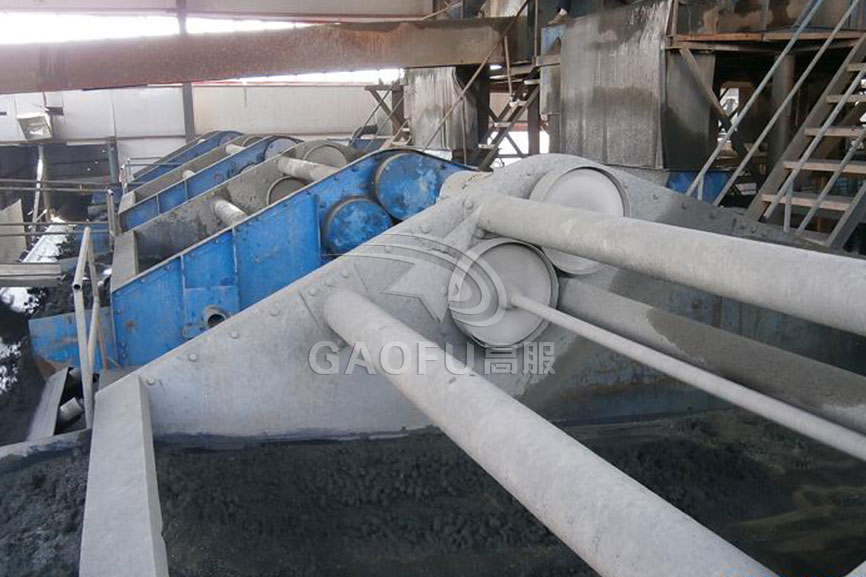

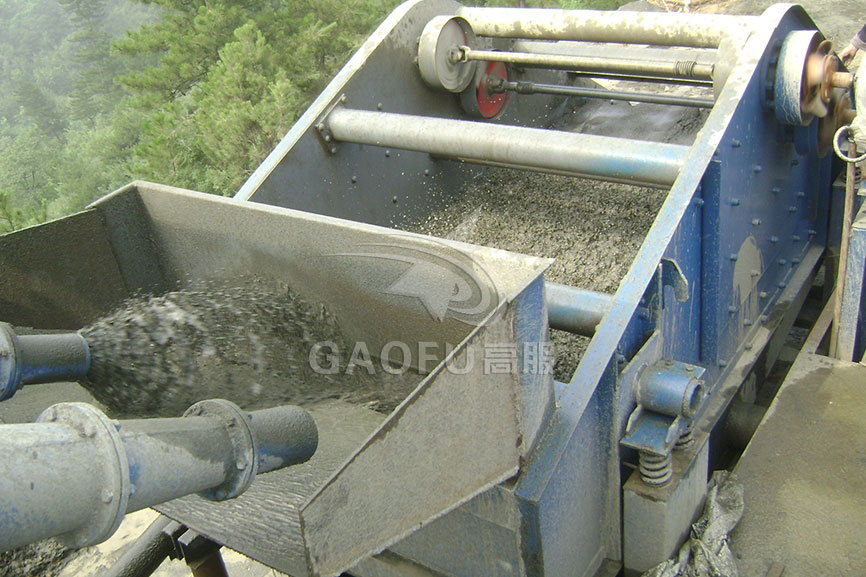

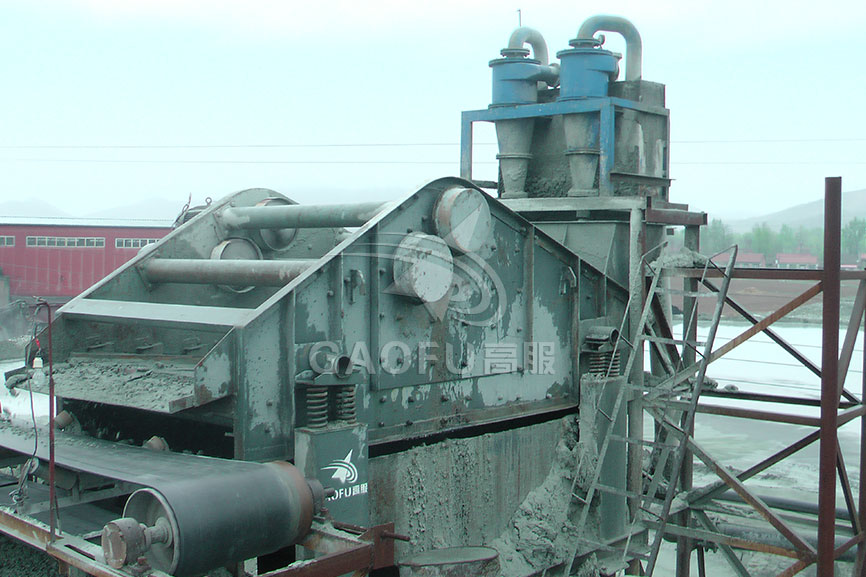

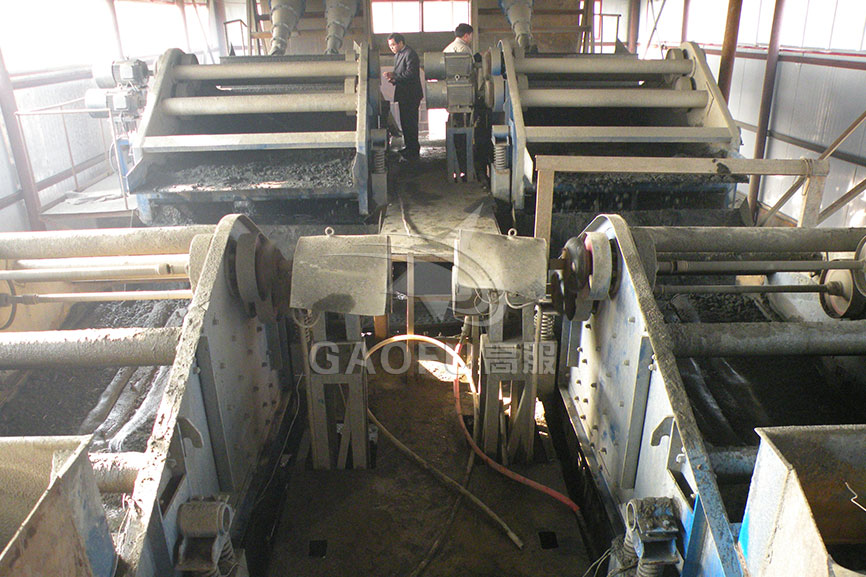

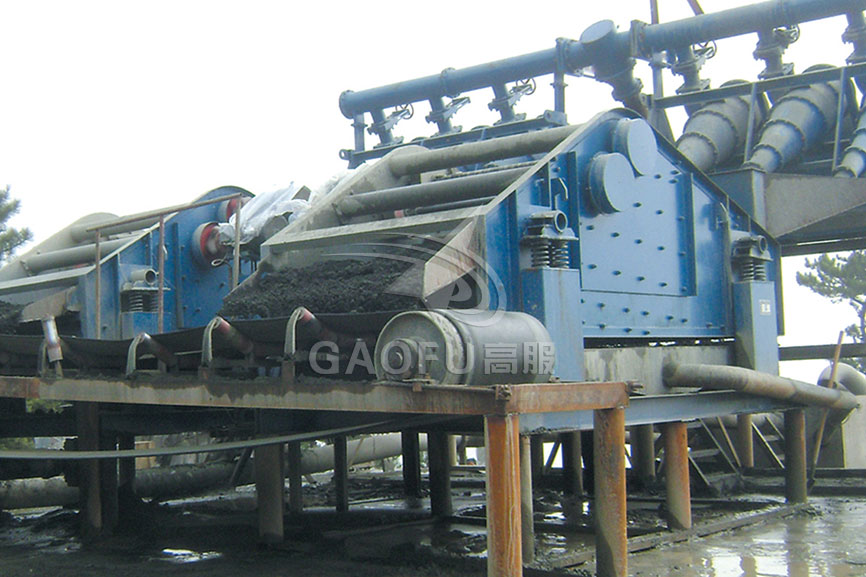

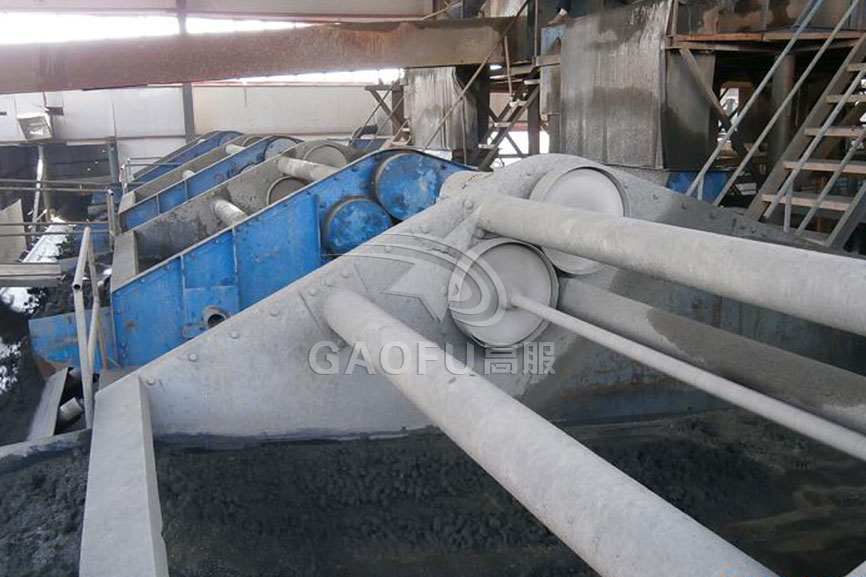

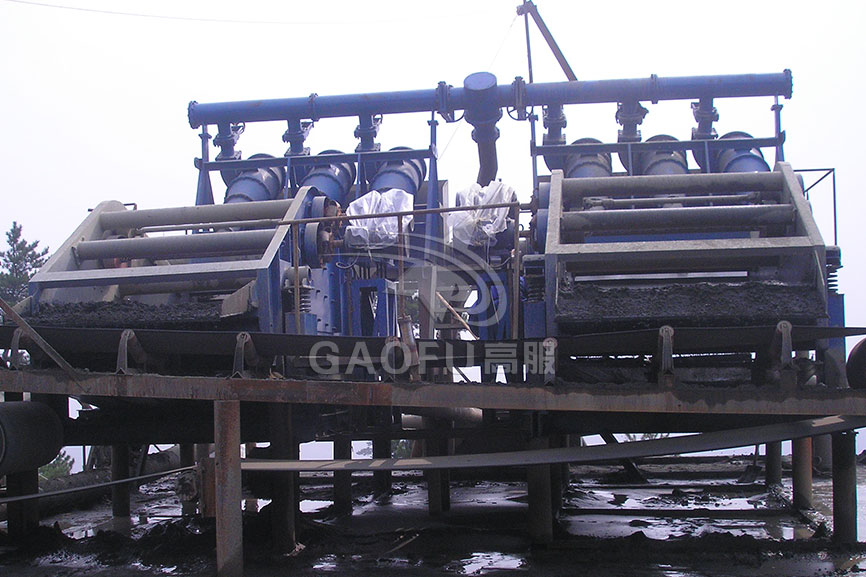

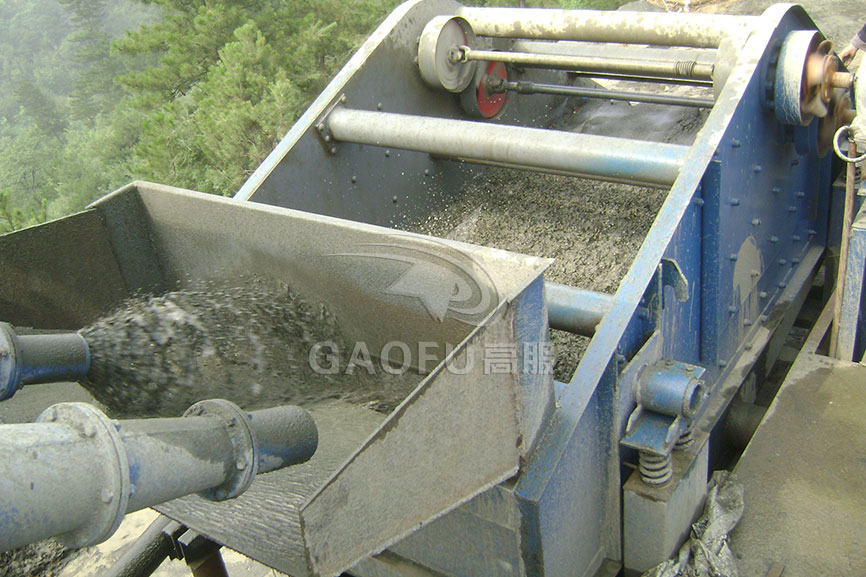

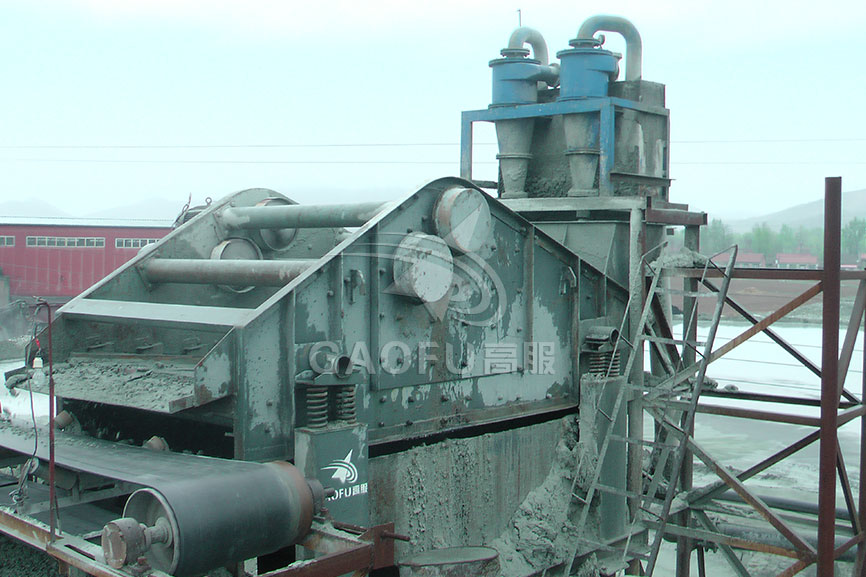

  • Product site
  • Product video
