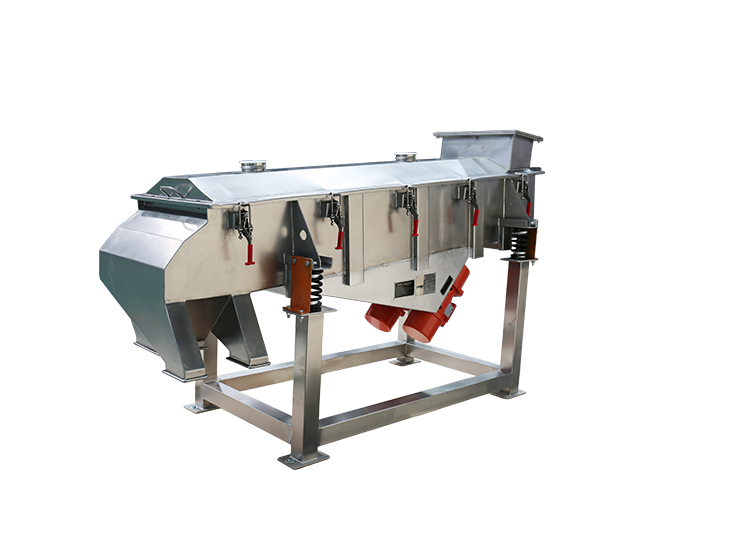

Linear Vibrating Screen

Why choose Gaofu linear vibrating screen?

Strong ability: Suitable for various materials, uniform particle size, high screening accuracy;

High efficiency: 1 to 5 layers sieves can be classification at the same time;

Easy maintenance: Easy maintenance and relatively low repair probability;

Easy to operate: The angle of the excitation source can be adjusted; screen mesh replacement is quick and easy.

Applicable industry

Silicon materials, food industry, pharmaceutical industry, chemical industry, etc.

Why is Gaofu linear vibrating screen?

  • Multi-level control Multi-layer design, various materials can be sieved
  • Environmentally friendly Fully enclosed structure, no dust flying, automatic discharge
  • High output Low energy consumption, high output, simple structure and easy maintenance
  • Unique structure Unique net installation structure, no mixed and material stringing phenomenon

These industries have chosen Gaofu linear vibrating screen

Silicon materials, food industry, pharmaceutical industry, chemical industry, etc.

Gaofu linear vibrating screen works very well for these materials!

Polycrystalline silicon, fused silica powder, spherical silica powder, silica, sugar, salt, monosodium glutamate, chicken essence, glucose, amino acids, potassium sorbate, bread crumbs, freeze-dried food, coconut granules, frozen dumplings, granular pills, pellets, Traditional Chinese medicine pieces, iron powder, aluminum powder, lead powder, copper powder, alloy powder, electrolytic copper powder, refractory materials, steel pellets, alumina, metallurgical powder, sodium bicarbonate (soda ash), etc.

Technical Parameters

Model Screen size(mm) Material granularity(mm) Incline angle(°) Amplitude(mm) Layers(s) Power(kW)
SZF520 500×2000 0.074~10 0°~7° 4~8 1~5 2×(0.4~0.75)
SZF525 500×2500 2×(0.4~0.75)
SZF530 500×3000 2×(0.75~1.1)
SZF535 500×3500 2×(0.75~1.1)
SZF1020 1000×2000 2×(0.75~1.5)
SZF1025 1000×2500 2×(1.1~1.5)
SZF1030 1000×3000 2×(1.5~1.8)
SZF1035 1000×3500 2×(1.5~2.2)
SZF1040 1000×4000 2×(1.5~2.2)
SZF1225 1200×2500 2×(1.5~2.2)
SZF1230 1200×3000 2×(1.8~3)
SZF1235 1200×3500 2×(1.8~3)
SZF1530 1500×3000 2×(2.2~3)
SZF1535 1500×3500 2×(2.2~3)
SZF1540 1500×4000 2×(2.2~4)

Who are using Gaofu linear vibrating screen
  • Chemical
  • Food
  • Biological
  • Metal powder
  • Fortune 500 companies
  • New energy
  • Pharmaceutical

Gaofu strength gallery
  • Certificate

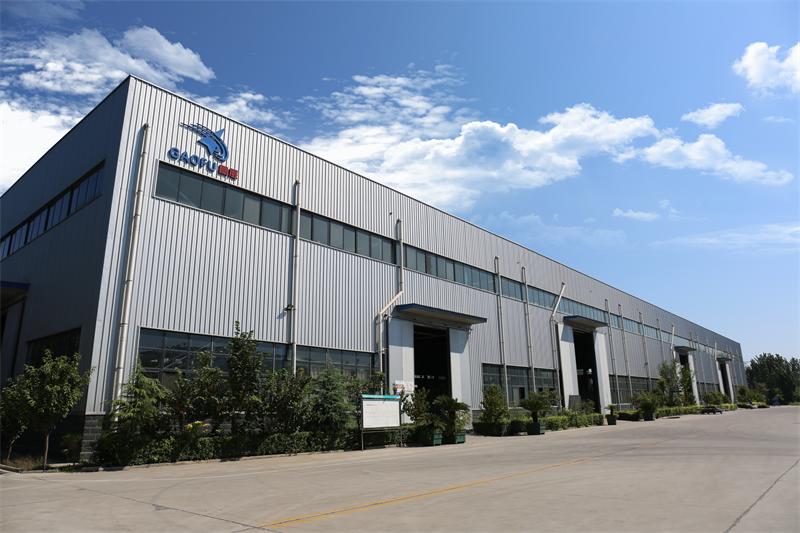

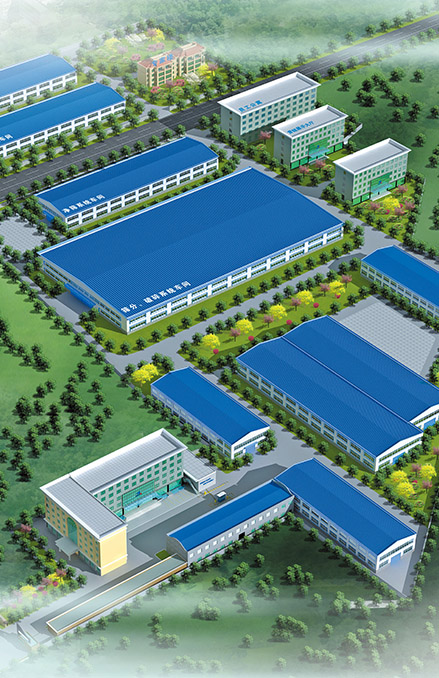

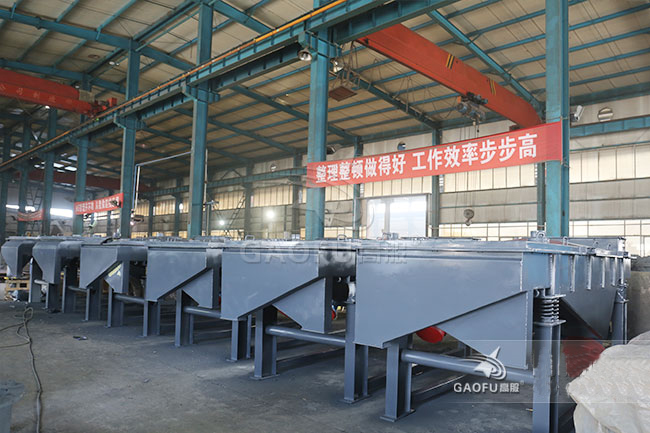

  • Company scene

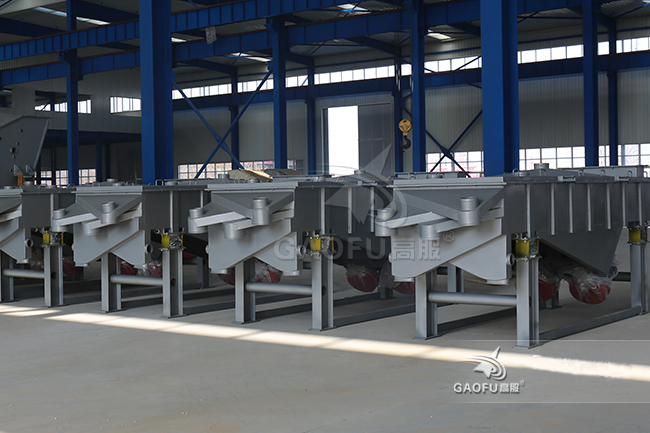

Product images

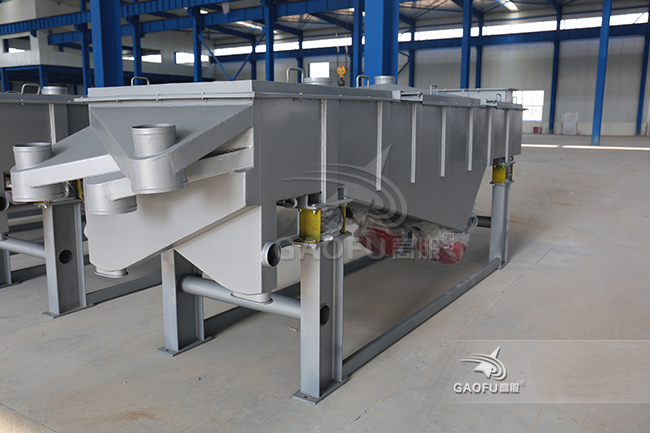

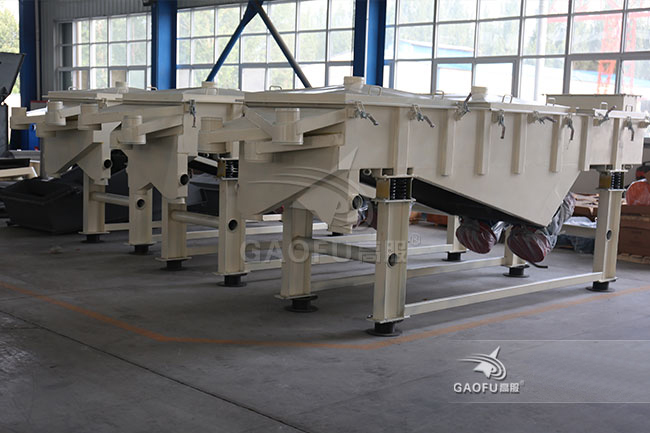

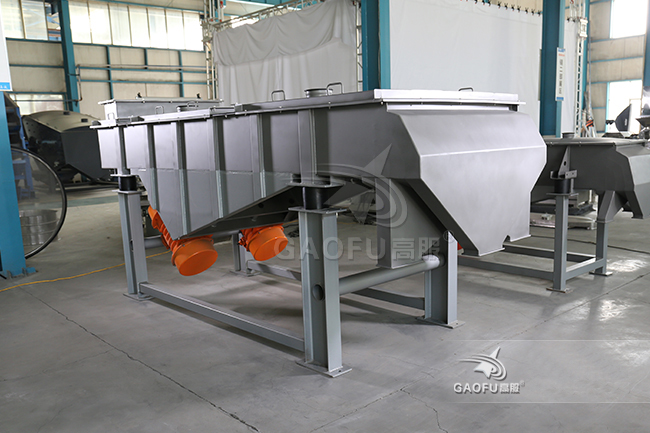

  • Product Gallery

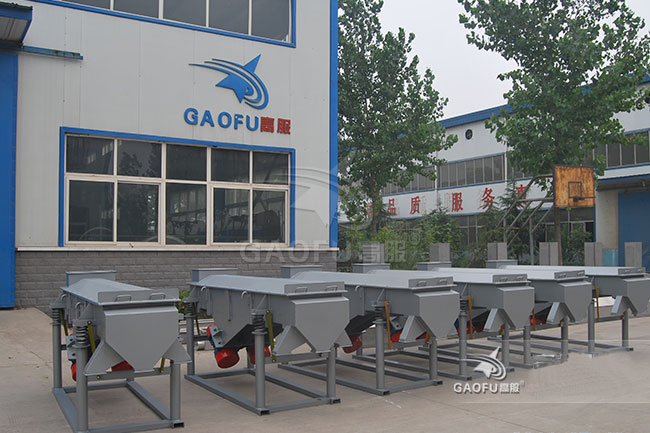

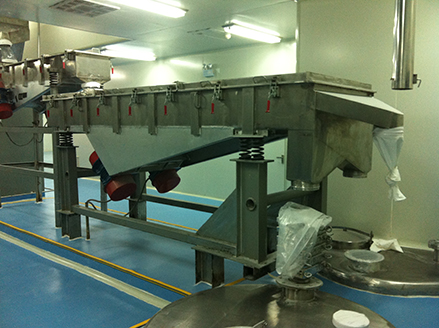

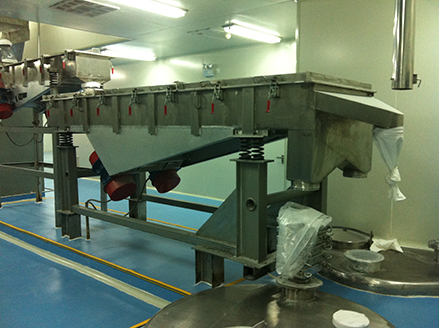

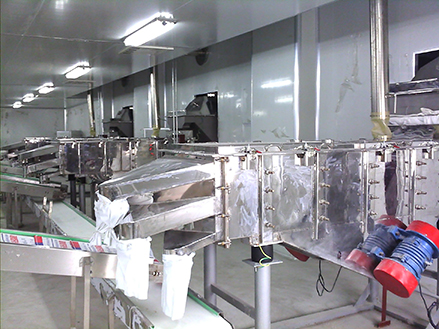

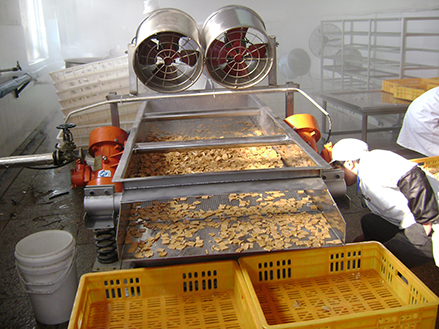

  • Product site
