Teeth Roller Crusher|Crusher|Coal Crusher

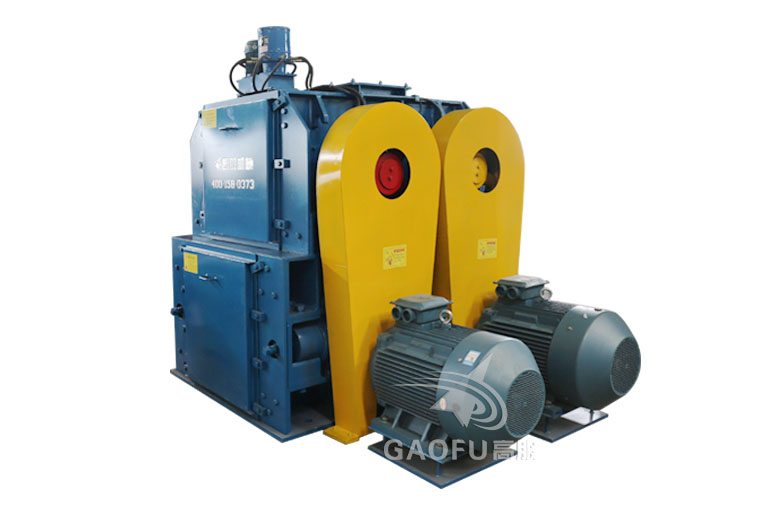

Four Teeth Roller Crusher

Application: Thermal power plants, Thermal companies, Coal fields, etc

Material: Coal, coal gangue, lignite, anthracite, peat, sinter, coke, slag, shale, limestone, etc

Why is Gaofu Four Teeth Roller Crusher?

  • Crushing Rate Low Adopting combined crushing, it will not produce secondary crushing phenomenon
  • High crushing output Low requirements for material moisture and mud content, high crushing output
  • Less maintenance Standardized module combination tooth plate is versatile,reduces the replacement cycle
  • Long service life Use a new vibrating uniform distributor to reduce the eccentric wear of the tooth plate, extend its service life

Why Choose Gaofu Teeth Roller Crusher

Gaofu Four Teeth Roller Crusher works very well for these materials!

Technical Parameters

GF4PG Four Teeth Roller Crusher Parameters(Input size≤250mm, output size≤10mm)

Model Capacity(t/h) Motor model Power(KW) Dimensions(L*W*H) Weight(Kg)
GF4PG-90 70-100 Y2-250M-6 37×2=74 2100×2450×2400 16100
GF4PG-120 100-130 Y2-280S-6 45×2=90 2100×2750×2400 18500
GF4PG–150 140-160 Y2-280M-6 55×2=110 2100×3000×2800 21000
GF4PG-180 160-190 Y2-315S-6 75×2=150 2500×3000×2800 25000
GF4PG-200 180-220 Y2-315S-6 75×2=150 2500×3100×2800 26500
GF4PG-250 220-260 Y2-315M-6 90×2=180 2500×3330×2800 28100
GF4PG-300 260-310 Y2-315L1-6 110×2=220 2500×3730×2800 31200
GF4PG-350 300-360 Y2-315L2-6 132×2=264 2500×3860×2800 32300
GF4PG-400 350-410 Y2-315L2-6 132×2=264 2500×4160×2800 36500
GF4PG-450 420-460 Y2-355S-6 160×2=320 2500×4360×2800 40700


Who are using Gaofu Four Teeth Roller Crusher
  • Fortune 500 companies
  • New energy

Gaofu strength gallery
  • Certificate
  • Company scene

Product images
  • Product Gallery
  • Product site
  • Product video

These products may be more suitable for you

    Heavy Vibrating Screen

    The working principle of ZSG heavy vibrating screen is: after the machine starting, a symmetrical arrangement of two vibration motor or excitation device with same model and specifications for synchronous reverse operation, the vibration force through the vibration body – motor or exciter base passed to the whole vibration body – screen box, makes the screen box drives the vibration screen surface to do cyclical movement, so that the material on the surface of the screen to jump sports with screen box, meanwhile, the material smaller than the screen mesh hole will fall to next layer through, becoming the undersize material, the material bigger than the screen mesh hole will be discharged by outlet after continuous jumping movement, eventually completed screening operation.

    Learn More

    Bar Screen

    When BTS bar screen work, the exciting force generated by the vibration exciter through the screen box to pass through to the screen surface, because the exciter vibration force generated by the longitudinal force, fForcing the sieve box to drive the sieve surface to make longitudinal before and after displacement. Under certain conditions, the material on the screen surface is thrown forward due to the exciting force, and the material smaller than the screen hole will fall down through the screen to the lower layer. The BTS bar vibrating screen material’s movement on the screen surface is parabolic, and the bar vibrating screen performs the material screening operation due to such repeated movement of the material.

    Learn More

    Dewatering Screen

    Dewatering screen adopt dual-electrode self-synchronization technology, universal eccentric block, adjustable amplitude vibrator. The machine is combined mainly by the screen box, exciter, support system and motor. The two mutually independent vibrators are respectively driven by the tape coupling to do synchronous reverse operation. The centrifugal force generated by two eccentric masses is superposed along the vibration direction and reversely counteracted, thereby forming a single vibration force along the vibration direction, making the screen box reciprocating linear motion.

    Dewatering screen, also known as high-frequency dewatering screen, changing the water surface tension of pulp through the exciting force, pulp water through the screen to become the undersize material, and fine material is blocked by the screen to form the filter layer by the vibration of the forward movement of discharge. Dewatering screen is mainly used for detailings dewatering in the mineral processing industry, coal slurry dehydration of coal preparation plant, washed quartz sand dewatering and ceramic slurry dehydration, and wet and dry classification, dehydration, removal and mud removal of medium and fine granular materials in industrial sectors such as electric power, sugar making and salt making.

    Learn More
