Circular Vibrating Screen

Why choose Gaofu circular vibrating screen

Product advantages

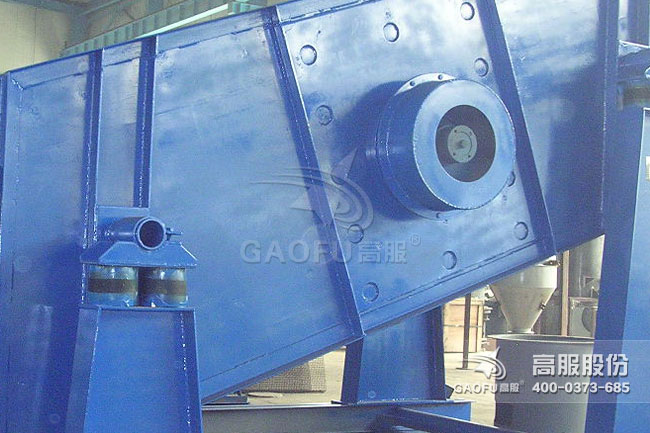

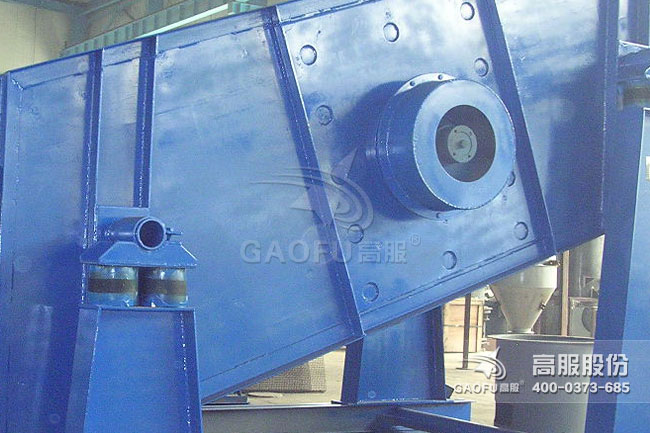

  • The exciter adopts an eccentric form, which not only increases the single excitation force of the eccentric mass of the exciter, but also the excitation force can be randomly adjusted, which facilitates modular design and use.
  • The structure of screen machines tends to be simplified, which is conducive to improving the manufacturing process level and assembly accuracy of the equipment.

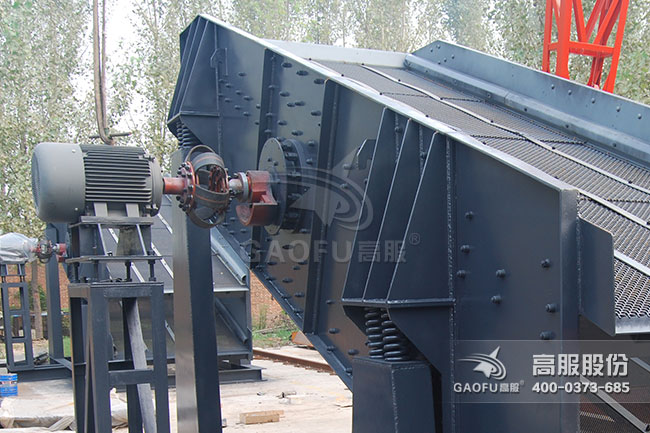

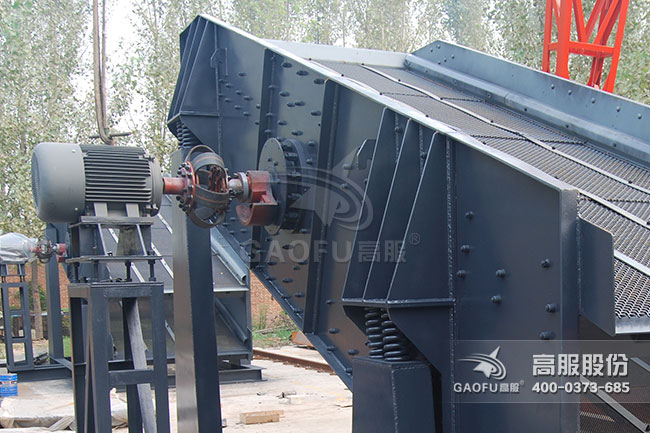

  • It adopts flexible connections such as cross-axis universal joint transmission shaft or rubber coupling to ensure smooth operation.
  • The screening machine has high screening efficiency, large processing capacity, and long service life.
  • Equipment maintenance is simple and convenient, and the operation efficiency of the whole machine is obvious.


Why is Gaofu circular vibrating screen?

  • Strong exciting force The single excitation force of the eccentric mass of the vibrator increases
  • Simplified structure Conducive to improving the manufacturing process level and assembly accuracy of the equipment
  • Running smoothly Flexible connection, smooth operation
  • High efficiency and long life Large processing capacity and long service life

These industries have chosen Gaofu circular vibrating screens.

Suitable for coal, mining, metallurgy, building materials, electric power, water conservancy, light industry and chemical industry

Gaofu circular vibrating screen works very well for these materials!

Suitable for screening coal, limestone, gravel, gravel, metal or non-metallic ores and other materials.

Technical Parameters

Model Input Size(mm) Mesh Size(mm) Capacity(t/h) Motor Model/Power(KW) Weight(Kg) Amplitude(mm)
YK1230 ≤150 10~80 75~245 Y160M-6 7.5 2800 6~10
YK1530 80~255 Y160M-6 7.5 3440
YK1536 95~310 Y160M-6 7.5 3650
YK1836 115~370 Y160L-6 11 5310
YK1848 150~490 Y160L-6 15 6410
YK2045 ≤200 10~100 165~520 Y180L-6 15 8900 8~12
YK2060 170~550 Y200L1-6 18.5 11000
YK2148 175~570 Y225M-8 22 10700
YK2160 220~715 Y225M-8 22 11900
YK2460 250~810 Y250M-8 30 13600
YK3060 300~960 Y250M-8 30 16800
YK1230 ≤150 10~80 75~245 Y160M-6 7.5 3200 6~10
YK1245 75~250 Y160L-6 11 3780
YK1530 80~255 Y160L-6 11 4650
YK1536 95~310 Y160L-6 11 5100
YK1836 115~370 Y180L-6 15 6840
YK1848 150~490 Y200L1-6 18.5 8200
YK2060 ≤200 10~100 170~550 Y225M-8 22 12500 8~12
YK2148 175~570 Y225M-8 22 13000
YK2160 220~715 Y225M-8 30 15500
YK2460 300~810 Y225M-8 30 18500



Who are using Gaofu circular vibrating screen
  • Chemical
  • Food
  • Biological
  • Metal powder
  • Fortune 500 companies
  • New energy
  • Pharmaceutical

Gaofu strength gallery
  • Certificate
  • Company scene

Product images

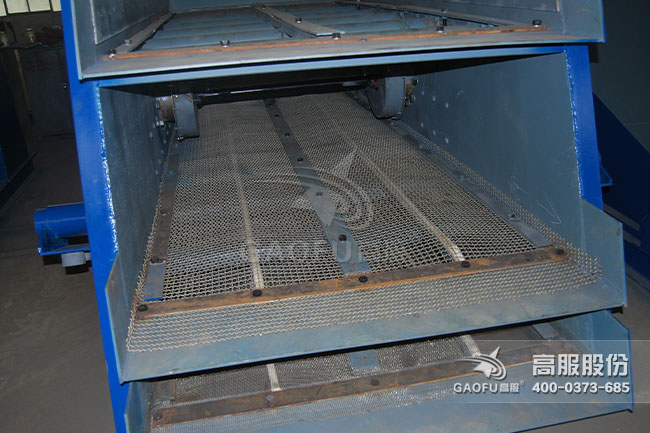

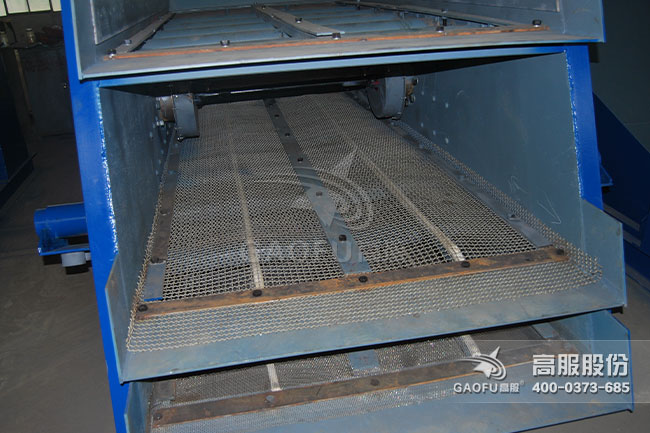

  • Product Gallery

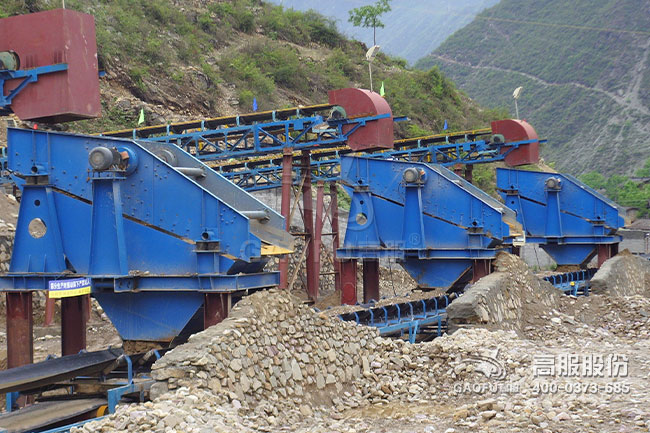

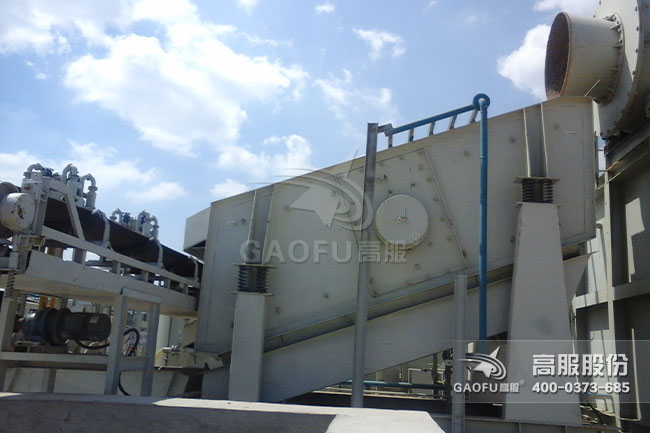

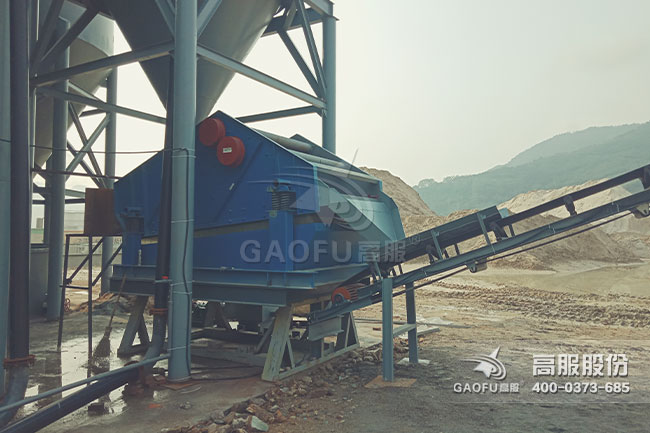

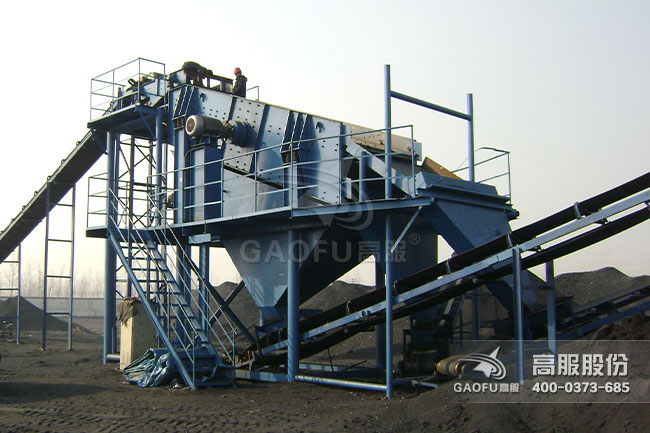

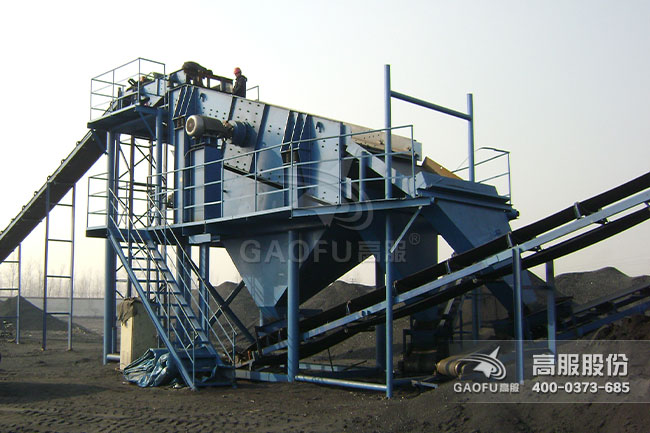

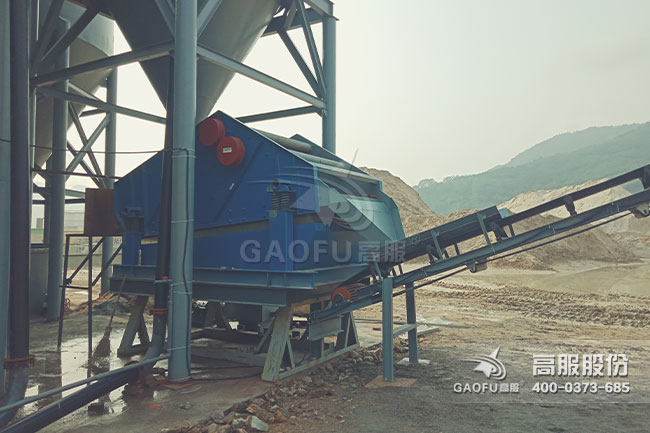

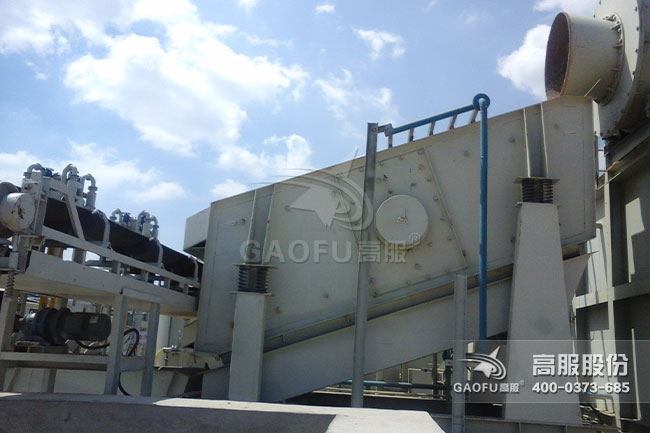

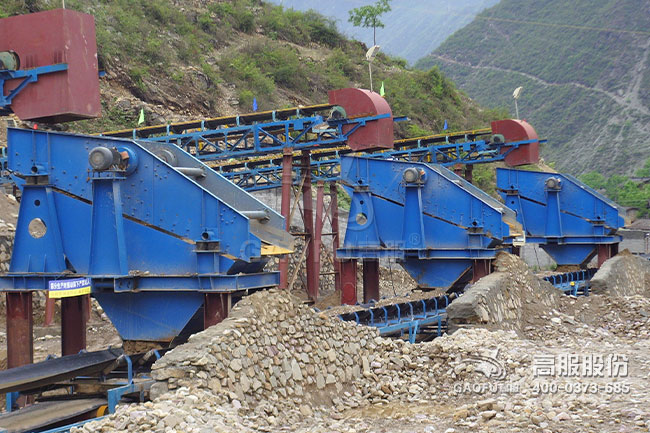

  • Product site
  • Product video

These products may be more suitable for you

    Dewatering Screen

    Dewatering screen adopt dual-electrode self-synchronization technology, universal eccentric block, adjustable amplitude vibrator. The machine is combined mainly by the screen box, exciter, support system and motor. The two mutually independent vibrators are respectively driven by the tape coupling to do synchronous reverse operation. The centrifugal force generated by two eccentric masses is superposed along the vibration direction and reversely counteracted, thereby forming a single vibration force along the vibration direction, making the screen box reciprocating linear motion.

    Dewatering screen, also known as high-frequency dewatering screen, changing the water surface tension of pulp through the exciting force, pulp water through the screen to become the undersize material, and fine material is blocked by the screen to form the filter layer by the vibration of the forward movement of discharge. Dewatering screen is mainly used for detailings dewatering in the mineral processing industry, coal slurry dehydration of coal preparation plant, washed quartz sand dewatering and ceramic slurry dehydration, and wet and dry classification, dehydration, removal and mud removal of medium and fine granular materials in industrial sectors such as electric power, sugar making and salt making.

    Learn More

    Square Swing Screen

    From the point of view of the trajectory of the screen box, which is the screen box, the square swing screen is also called the arc screen. The vibration force generated by the drive device is an inertial force that changes in a certain direction around a fixed axis, and its essence is The reciprocating inertial force formed by the rotation of the eccentric wheel around the fixed axis. According to the structural characteristics and working principle of the square rocking vibrating screen, the screen surface is generally horizontal or slightly inclined (the inclination angle is 0°~5°). After the screen machine is started, the shaking body of the screen machine, namely the screen box, will reciprocate back and forth under the action of inertial force. The screen box drives the screen surface to periodically shake, so that the material on the screen surface will move with the screen box in a directional jumping motion. During this period, the physical materials smaller than the screen surface aperture fall to the lower layer through the screen holes and become under-the-screen objects. The materials larger than the screen surface aperture are discharged from the discharge port after continuous tumbling and jumping motion, thereby completing the screening work.

    Learn More

    Roller Sieve

    Since the screen shafts are arranged according to different working angles, when the material runs at a higher working angle, the speed is faster; when the material runs at a lower working angle, the speed is slower. Materials running at two different speeds start to move axially when they meet at a certain position on the screen surface. The material layer can be evenly distributed on the screen surface, effectively improving screening efficiency.

    Learn More
